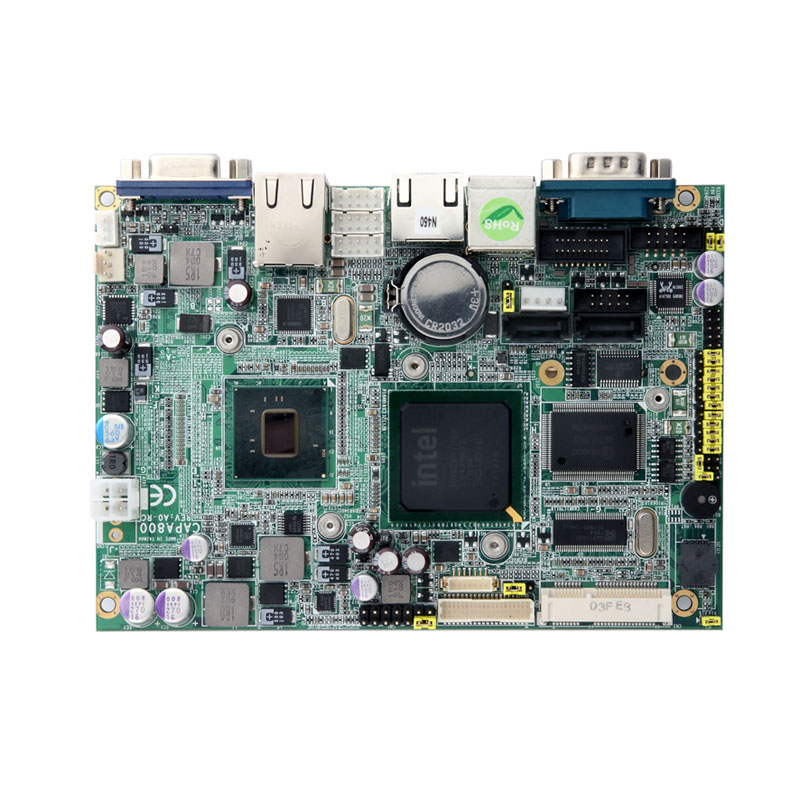

CAPA800

Intel® Atom™ N450/ D410/ D510 3.5" Embedded SBC with Intel® ICH8M Chipset, LVDS/VGA, Dual LANs and Audio

Introduction
The CAPA800 3.5-inch embedded board supports the low power single-core Intel® Atom™ processors N450 and D410 1.66GHz and the dual-cores Intel® Atom™ processor D510 1.66GHz. The CAPA800 has equipped the processor with the Intel® ICH8M I/O controller hub to deliver great system performance and full I/O functions, and support full DDR2 2GB memory. Integrated Intel® Graphics Media Accelerator 3150 supports advanced 3D graphics and 18-bit LVDS and VGA. Expansion capabilities include a socket for PCI Express Mini card. The system only requires +12V DC power input. Axiomtek's small-footprint CAPA800 embedded board is made for in-vehicle infotainment, industrial control, automation, gaming, medical devices, self-serve terminal, digital signage, or other small and fanless devices.

Features
• Intel® Atom™ processor N450/ D410/ D510 1.66 GHz
• Intel® ICH8M chipset
• 1 DDR2 SO-DIMM supports up to 2 GB memory capacity
• 8 USB 2.0 ports
• 4 COM ports
• PCI Express Mini Card expansion

Ordering Information
• CAPA800VGGA-N450 (P/N-E38E800100) (fanless)
3.5" SBC with Intel® Atom™ processor N450, VGA/LVDS, 2 10/100/1000Mbps Ethernet and audio
• CAPA800VGGA-D510 (heatsink fan included)(P/N-E38E800103)
3.5" SBC with Intel® Atom ™ processor D510, VGA/LVDS, 2 10/100/1000Mbps Ethernet and audio
• CAPA800VGGA-D410 (heatsink fan included) (P/N-E38E800102)
3.5" SBC with Intel® Atom ™ processor D410, VGA/LVDS, 2 10/100/1000Mbps Ethernet and audio
• AX95601 (P/N-E395601100)
LVDS converter for scale up to 1920 x 1080 48bit
• AX95601 (P/N-E395601101)
LVDS converter for pixel compensated to 1280 x 1024 48bit
