CAPA830

Intel® Atom™ D2550/ N2600/ N2800 3.5" Embedded SBC with Intel® NM10 Chipset, LVDS/HDMI/VGA, Dual LANs, Audio and ZIO

Introduction

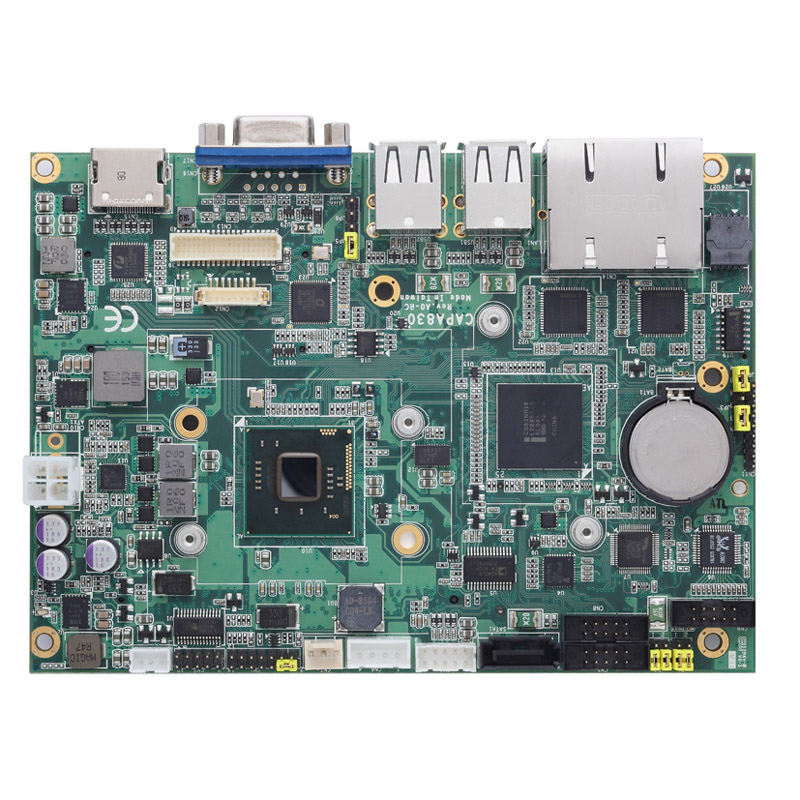

The CAPA830 wide-temperature 3.5-inch embedded board supports the newest Intel® Atom™ processor D2550 1.86GHz, N2800 1.86GHz and N2600 dual core 1.6GHz with the Intel® NM10 chipset. With incredible low power and rugged design, it offers -20°C to +70°C wide temperature range and only requires +12V DC power input. The fanless design also makes CAPA830 more reliable and stable, without dust or noise issues. One DDR3 SO-DIMM on board implements up to 4GB of system memory. In addition to rich onboard I/Os, the CAPA830 adopts a ZIO connector on the rear-side that integrates PCIe x1, USB, LPC and SMbus expansion. Axiomteks innovative ZIO extension form factor to extend multiple I/O helps system integrators to provide optimized solutions in a more cost-effective way. The outstanding CAPA830 offers an excellent balance between high performance and power-saving for space-limited and thermally constrained embedded applications.

Features
• Intel® Atom™ processor D2550 (1.86 GHz)/ N2800 (1.86 GHz)/ N2600 (1.6 GHz)
• Intel® NM10 chipset
• 1 DDR3 SO-DIMM supports up to 4 GB memory capacity
• 6 USB 2.0 ports
• 2 COM ports
• ZIO connector

Ordering Information
• CAPA830VHGGA
Intel® Atom™ processor D2550, 1 PCI Express Mini Card, 1 RS-232/422/485, 1 RS-232
• CAPA830VHGGA
Intel® Atom™ processor N2800, Fanless, 1 PCI Express Mini Card, 1 RS-232/422/485, 1 RS-232
• CAPA830VHGGA
Intel® Atom™ processor N2600, Fanless, 1 PCI Express Mini Card, 1 RS-232/422/485, 1 RS-232
• CAPA830VHGGA-ZIO
Intel® Atom™ processor D2550, 2 PCI Express Mini Card, 1 SIM Slot, 3 RS-232/422/485, 3 RS-232
• CAPA830VHGGA-ZIO
Intel® Atom™ processor N2800, Fanless, 2 PCI Express Mini Card, 1 SIM Slot, 3 RS-232/422/485, 3 RS-232
• CAPA830VHGGA-ZIO
Intel® Atom™ processor N2600, Fanless, 2 PCI Express Mini Card, 1 SIM Slot, 3 RS-232/422/485, 3 RS-232
