Litemax Spanpixel™ - Resizing LCDs
Litemax Spanpixel, To resize a LCD is literally to cut the glass, polarizers, circuits and circuit boards to a new size. Years ago, it was thought impossible to preserve the original performance of a previously manufactured LCD once the glass circuits are cut. However, Litemax has done the impossible, over and over again, becoming the world's leading pioneer and leader in LCD resizing solutions.
Litemax Spanpixel Features
• LED Backlit
• Up to 2000 nits Extra High Brightness
• Long Life Time: Up to 70K Hours
• High Uniformity: 85% Uniformity Compared With CCFL (75%)
• Low Power Consumption
• Low Radiation, No Interference: Much Stable Compared to Traditional CCFL Panel
• DC Power Input: AC Inverter not required

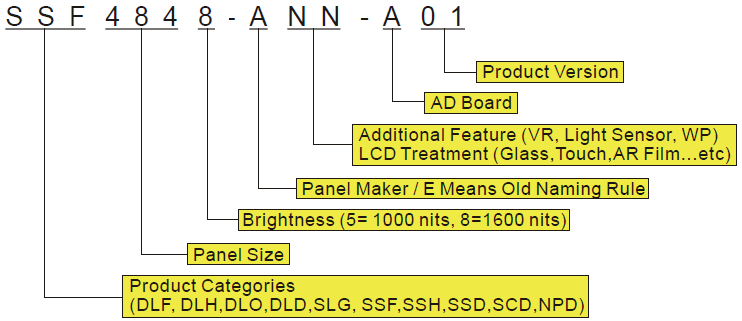

Litemax Product Naming Rule:
SSF = PANEL + LED DRIVER
SSH = PANEL + LED DRIVER + A-D BOARD + CABLES
SLG = CHASSIS DISPLAY FOR GAMING (LED DRIVER/A-D BOARD INCLUDED)
SSD = CHASSIS DISPLAY (LED DRIVER/A-D BOARD INCLUDED)
Backlight - LED
Interface -LVDS
Size |
Model |
Brightness (typ) |
Resolution |
Outline Dims (WxHxDmm) |
Viewing angle (u/d/r/l) |
Backlight |
Interface |
Operating Temp Range |
6.2" |
SSF0635-E |
1000 |
1024X250 |
165.7 x 55 x 5.3 |
TBA |
WLED |
LVDS |
-30 to +80 |
9.9" |
SSF1033-E |
700 |
800X200 |
279 x 87.1 x 9 |
TBA |
WLED |
LVDS |
-20 to +70 |
13.9" |
SSF1393-A |
600 |
1280X398 |
358.5 x 130 x18 |
TBA |
WLED |
LVDS |
0°C ~ +50°C |
15" |
SSF1505-E |
1000 |
1280X242 |
396 x 94.2 x12.2 |
160° (H), 170° (V) |
WLED |
VGA, DVI-D |
0°C ~ +50°C |
15.9" |
SSF1515-E |
2000 |
1280X512 |
396 x 173.6 x12.1 |
170°/160° |
WLED |
LVDS |
0°C ~ +50°C |
16.3" |
SSF1624-B |
350 |
1366X238 |
431.8 x 95.8 x15.1 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
17.2" |
SSF1725-B |
1000 |
1366X510 |
430.3 x 178.4 x14 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
18.7" |
SSF1875-M |
1000 |
1920X146 |
497 x 54.4 x 13.76 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
19" |
SSF1905-Y |
1000 |
1920X360 |
491.5 x 109.4 x 12.8 |
178°/178° |
WLED |
LVDS |
0°C ~ +50°C |
19.1" |
SSF1916-I |
1200 |
1920X388 |
497.6 x 121.3 x 16.55 |
178°/178° |
WLED |
LVDS |
0°C ~ +50°C |
19.4" |
SSF1945-M |
1000 |
1920X536 |
497 x 149.8 x 13.96 |
178°/178° |
WLED |
LVDS |
0°C ~ +50°C |
21" |
SSF2106-Y |
1200 |
190X132 |
542.4 x 54.7 x 13.4 |
178°/178° |
WLED |
LVDS |
0°C ~ +50°C |
21.2" |
SSF2125-A |
1000 |
1920X316 |
555.9 x 116.9 x 17.1 |
170°/160° |
WLED |
LVDS |
0°C ~ +50°C |
23.1" |
SSF2312-Y |
350 |
1920X158 |
497.4 X 60.4 X 15 |
178°/178° |
WLED |
LVDS |
0°C ~ +45°C |
24" |
SSF2405-Y |
1000 |
1920X360 |
732 x165 x 16.8 |
178°/178° |
WLED |
LVDS |
0°C ~ +50°C |
28" |
SSF2805-Y |
1000 |
1920X360 |
732 x165 x 16.8 |
178°/178° |
WLED |
LVDS |
0°C ~ +50°C |
28" |
SSF2845-E |
1000 |
1920X357 |
735.4 X 170.5 X 18 |
178°/178° |
WLED |
LVDS, DVI-D, VGA |
0°C ~ +50°C |
28.6" |
SSF2861-Y |
3200 |
1920X540 |
731.4 X 229.4 X 20.3 |
178°(H),178°(V) |
WLED |
LVDS, DVI-D, VGA |
-20~60 ℃ |
28.6" |
SSF2869-Y |
1800 |
1920X540 |
731.4 X 229.4 X 20.3 |
178°(H),178°(V) |
WLED |
LVDS, DVI-D, VGA |
0°C ~ +50°C |
34.8" |
SSF3480-I |
2000 |
1920X264 |
899.4 X 149.3 X 18.85 |
178°(H),178°(V) |
WLED |
LVDS, DVI-D, DP, HDMI |
0°C ~ +50°C |
35.8" |
SSF3585-INK |
1000 |
1920X532 |
899.4 (W) × 270.7 (H) mm |
89/89/89/89 |
WLED |
V-by-One |
0°C ~ +50°C |
35.8" |
SSF3588-I |
1600 |
1920X534 |
899.4 X 270.7 X 18.85 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
37" |
SSF3700-Y |
2500 |
1920X540 |
923.3 X 277.10 X 10.6 |
178°(H),178°(V) |
WLED |
LVDS, DVI-D, DP, HDMI |
0°C ~ +50°C |
37" |
SSF3705-Y |
1000 |
1920X540 |
923.3 X 277.10 X 10.6 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
36.6" |
SSF3665-I |
1000 |
1920X290 |
960 X 174.2 X 15.8 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
36.8" |
SSF3685-I |
1000 |
1920X358 |
960 X 207.3 X 16 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
38" |
SSF3805-I |
1000 |
1920X540 |
960 X 302.4 X 15.8 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
42.2" |
SSF4225-Y |
1000 |
1920X480 |
1059.4 X 283.5 X 56.9 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
42.2" |
SSF4220-Y |
2500 |
1920X480 |
1059.4 X 283.5 X 56.9 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
43.5" |
SSF4350-I |
2000 |
1920X268 |
1121.7 X 184.8 X 21.6 |
176° (H), 176° (V) |
WLED |
LVDS |
0°C ~ +50°C |
44.8" |
SSF4485-I |
1000 |
3840X1076 |
1121.7 X 338.9 X 21.6 |
178°(H),178°(V) |
WLED |
V-by-One |
0°C ~ +50°C |
47.8" |
SSF4788-B |
1600 |
1920X178 |
1244.6 X 151.5 X 23.9 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
48" |
SSF4805-Y |
1000 |
3840X720 |
1217.85 X 248.18 X 9 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
48.4" |
SSF4848-U |
1600 |
1920X358 |
1244.6 X 264.9 X 27.1 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
48.8" |
SSF4887-B |
1400 |
1920X438 |
1244.6 X 313.5 X 21.8 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
49.5" |
SSF4956-B |
1200 |
1920X538 |
1244.6 X 378.7 X 27.6 |
178°(H),178°(V) |
WLED |
LVDS |
0°C ~ +50°C |
50.5" |
SSF5055-I |
1000 |
3840X536 |
1308.4 X 213.3 X 22.35 |
178°(H),178°(V) |
WLED |
V-by-One |
0°C ~ +50°C |
51.9" |
SSF5197-I |
1400 |
3840X1077 |
1301.6 X 392.2 X 24.2 |
178°(H),178°(V) |
WLED |
V-by-One |
0°C ~ +50°C |
57.4" |
SSF5745-I |
1000 |
3840X807 |
1462.50 X 333.85 X 29.7 |
178°(H),178°(V) |
WLED |
V-by-One |
0°C ~ +50°C |
