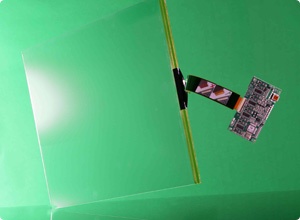

Zypos
– Rugged low cost performance
The manufacturing technology employed for ZYPOS® is unique to Zytronic and offers significant benefits to traditional users of resistive, capacitive and SAW technologies. Unlike other touch technologies, the active component of ZYPOS® is embedded for protection, providing a true safety laminated pure glass-fronted construction.
View PDF Datasheet
Features
and Benefits
- Laminated safety glass fronted construction.
- Excellent readability - light transmission of up to 91% through a standard sensor.
- Accuracy - < ~1mm on 10.4” to 17.1” sized units.
- Response time – < 20ms.
- Stability – no drift, therefore no recalibration is required.
- Pointing device – works with gloved and ungloved finger.
- Environments – functionality is unaffected by surface contaminants.
- Resistance to contamination – unaffected by harsh cleaning fluids and other noxious substances.
- Operating temperature – ranges from –20ºC to > +60ºC.
- Flying tail and separate controller for ease of installation.
- Supports serial RS232 or USBv1.1, compatible with USBv2.0.
- Operating systems supported – Windows® 9X, NT, ME, 2000, XP, XPe, Vista, Windows® 7 (single and dual touch) and Linux.
- Output protocol available to allow users to customise own drivers.
- The ideal solution for all large format touch screen applications
Size |
Part number |
Overall Thickness (mm) |
Active Area (mm) |
Outer Dimensions (mm) |
Tail Connector |
Production MOQ |
Controller -USB |
Controller -SERIAL |
PDF |
7" |
ZYP7-0.0003B |
3 |
153 x92 |
183 x 113.5 |
FPC/ZIF |
10 |
ZYX-100-U-OFF-32-A |
ZYX-100-S-OFF-32-A |
|
8.4" |
ZYP8-4.0001 |
3 |
172.5 x132 |
202.5 x 153.5 |
FPC/ZIF |
10 |
ZYX-100-U-OFF-32-A |
ZYX-100-S-OFF-32-A |
|
10.4" |
ZYP10-4.0001D
|
3 |
213 x162 |
243 x 183.5 |
FPC/ZIF |
10 |
ZYX-100-U-OFF-32-A |
ZYX-100-S-OFF-32-A |
|
12.1" |
ZYP12-1.0001C |
3 |
247.5 x 187.5 |
277.5 x 209 |
FPC/ZIF |
10 |
ZYX-100-U-OFF-32-A |
ZYX-100-S-OFF-32-A |
|
15.1" |
ZYP15-1.0001D |
3 |
306 x 232 |
336 x 253.5 |
FPC/ZIF |
10 |
ZYX-100-U-OFF-32-A |
ZYX-100-S-OFF-32-A |
|
17.1" |
ZYP17-1.0001D |
3 |
339 x 271 |
369 x 292.5 |
FPC/ZIF |
10 |
ZYX-100-U-OFF-32-A |
ZYX-100-S-OFF-32-A |
|
19" |
ZYP19-0.0001D |
3 |
377 x 302 |
407 x 323.5 |
FPC/ZIF |
10 |
ZYX-100-U-OFF-32-A |
ZYX-100-S-OFF-32-A |
|
20.1" |
ZYP20-1.0001 |
3 |
409 x 307 |
439 x 328.5 |
FPC/ZIF |
10 |
ZYX-100-U-OFF-32-A |
ZYX-100-S-OFF-32-A |
|
|
