Classic Desktop Series

The KONTRON Classic Desktop Series



The mainboards of the Classic Desktop Series are equipped with an Intel® 100-Series chipset which offers latest technology to fulfill office needs. The comprehensive lineup provides products for every business segment, from entry level office-PCs up to high performance and well manageable business solutions within enterprise infrastructure.



Mainboard Overview

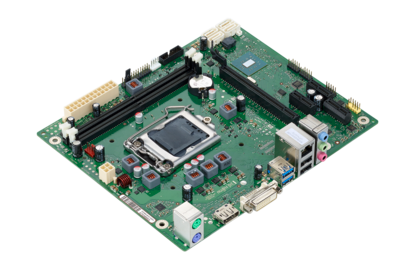

D3400-B
D3400-B
The KONTRON Classic Desktop Mainboard D3400-B is equipped with an Intel® H110 Express Chipset and the 6th generation of Intel&reg Core™ i processor. Impressing by a silent and secure system the KONTRON D3400-B is especially preferred in the office area. It provides best functionality for standard business tasks at attractive prices.

Technical Details

  • µATX
  • Intel® H110 Express Chipset
  • LGA1151
    • Intel® Skylake-S Desktop Processors(Dual/Quad Core)
    • max. 65W TDP
  • Dual Channel DDR4 2133 SDRAM / UDIMM (two
    sockets), max. 32GB
  • Intel® HD Graphics (DX12, integrated in processor)
  • DP 1.2 & DVI-D
  • 1x PCI Express x16 (Gen. 3), 2 PCI Express x1 (Gen. 2)
  • Realtek GbE LAN
  • Intel® TPM V2.0
  • High Definition 5.1 Audio
  • USB 2.0: 2x external / 2x internal
  • USB 3.0: 2x external / 1x internal
  • 4x SATA III

D3400-B

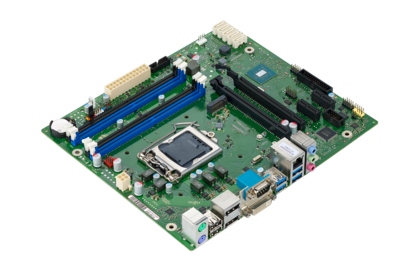

D3401-B
D3401-B
The KONTRON Mainboard D3401-B of the Classic Desktop Series is combined with an Intel® Q150 Express Chipset and an Intel® Core™ processor of the 6th generation. The KONTRON D3401-B enables the user to operate 24/7 with a maximum TDP of 65W and provides high-end data transmission due to M.2 SSD onboard support.

Technical Details

  • µATX
  • Intel® Q150 Express Chipset
  • LGA1151
    • Intel® Skylake-S Desktop Processors
      (Dual/Quad Core)
    • max. 65W TDP
  • Dual Channel DDR4 2133 SDRAM / UDIMM (four
    sockets), max. 64GB
  • Intel® HD Graphics (DX12, integrated in processor)
  • 2x DP 1.2 & DVI-D
  • 2x PCI Express x16 (Gen. 3), 2x PCIe x1
  • Intel® GbE LAN
  • Intel® TPM V2.0
  • High Definition 5.1 Audio
  • USB 2.0: 2x external / 2x internal
  • USB 3.0: 4x external / 1x internal
  • 5x SATA III / 1x M.2 SSD Socket

D3401-B

D3410-B
D3401-B
The KONTRON Mainboard D3410-B of the Classic Desktop Series is the best choice for office applications. Supporting the Intel® Core™ i processor of the 6th generation and powered by the Intel® B150 Express Chipset this ultra small µATX mainboard provides best functionality and longevity for 24/7 continious operation at 45°Celsius.

Technical Details

  • µATX
  • Intel® B150 Express Chipset
  • LGA1151
    • Intel® Skylake-S Desktop Processors
      (Dual/Quad Core)
    • max. 65W TDP
  • Dual Channel DDR4 2133 SDRAM / UDIMM (two sockets),
    max. 32GB
  • Intel® HD Graphics (DX12, integrated in processor)
  • 2x DP 1.2 & DVI-D
  • 1x PCI Express x16 (Gen. 3), 2 PCI Express x1 (Gen. 2)
  • Realtek GbE LAN
  • Intel® TPM V2.0
  • High Definition 5.1 Audio
  • USB 2.0: 4x external / 2x internal
  • USB 3.0: 2x external / 1x internal
  • 4x SATA III

D3410-B
