D3713-V/R mITX
The industrial motherboard D3713-V/R mITX supports the AMD Ryzen™ Embedded V1000 and R1000 series processors with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and industrial PCs.
|
| |
|

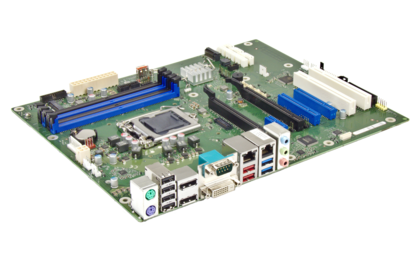

D3646-S ATX
Besides assured extended availability for five years, the KONTRON Mainboard D3646-S of the Industrial Series provides support for highly performant Intel® XEON® E-21xx processors, Intel® Core™ i7 / i5 / i3 (8th gen.) processors and Intel® Pentium® / Intel® Celeron® processors. Also, it offers latest Intel® AMT 12.0 and vPro manageability. It is particularly suitable for applications like workstations and entry-level servers, various medical applications and applications with high-performance needs.
|
| |
|

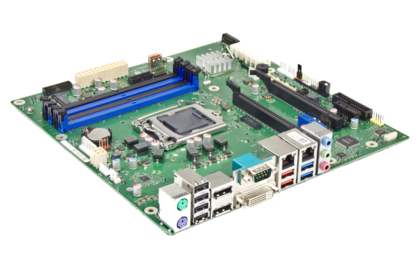

D3641-S mATX
The KONTRON Industrial Mainboard D3641-S µATX is equipped with the highly performant Intel® C246 Express Chipset. It also offers a multitude of supporting processors such as the Intel® XEON® E-21xx processor series, as well as Intel® Core™ i7 / i5 / i3 (8th gen.) and the Intel® Pentium® / Intel® Celeron® processor series. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60°C the KONTRON D3641-S provides high functionality and fits perfect with special requirements of certain markets. It offers extended manageability with the latest Intel® AMT 12.0 and vPro.
|
| |
|

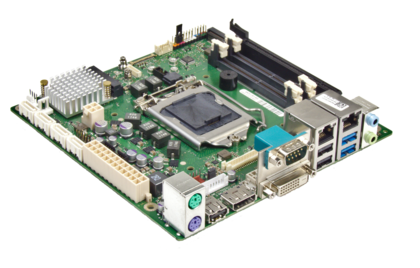

D3634-S Mini-ITX
The KONTRON Mainboard D3634-S Mini-ITX is a extraordinary smart solution for industrial needs. It is equipped with the cost-optimized Intel® H310 Express Chipset. This mainboard supports the Intel® Core™ i7 / i5 / i3 (8th gen.) and the Intel® Pentium® / Intel® Celeron® processor series up to 95W TDP. The KONTRON D3634-S also features 2x LAN and eDP. It is designed and approved for enhanced operating temperature range up to 60°C and for 24/7 continuous operation.
|
| |
|

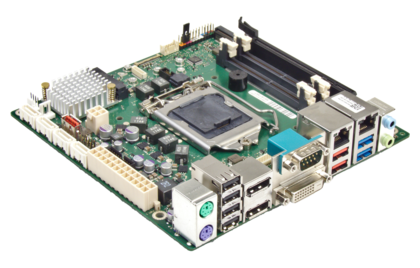

D3633-S Mini-ITX
The KONTRON Mainboard D3633-S Mini-ITX offers the perfectly right-sized solution for all industrial needs and supports the powerful Intel® Core™ i7 / i5 / i3 (8th gen.) and the Intel® Pentium® / Intel® Celeron® processor series. It is equipped with the highly performant Intel® Q370 Express Chipset and guarantees highest functionality on a small-sized surface with Intel® AMT 12.0 and vPro support, 2x Intel® GbE LAN and BIOS configurable PCI Express Lane. It is designed and approved for enhanced operating temperature range up to 60°C and for 24/7 continuous operation.
|
| |
|

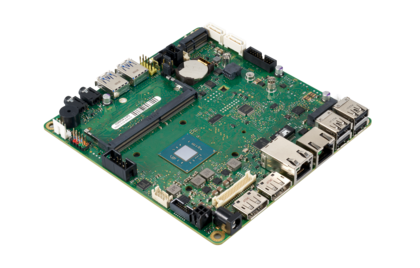

D3544-S
The KONTRON Industrial Mainboard D3544-S Mini-STX, designed for the new and innovative Intel®-processor series 'Gemini Lake', is equipped with a highly performant Intel® embedded Gemini Lake SoC and supports the Intel® Celeron® Processors J4005, J4105 as well as the Intel® Pentium® Processor J5005. It offers highest functionality supporting 24/7 operation mode and an enhanced operating temperature range from 0°C to 60°C.
|
| |
|

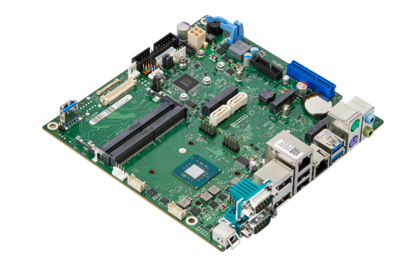

D3543-S
The KONTRON Industrial Mainboard D3543-S Mini-ITX, designed for the new and innovative Intel®-processor series 'Gemini Lake', is equipped with a highly performant Intel® embedded Gemini Lake SoC and supports the Intel® Celeron® Processors J4005, J4105 as well as the Intel® Pentium® Processor J5005. It offers highest functionality supporting 24/7 operation mode and an enhanced operating temperature range from 0°C to 60°C.
|
| |

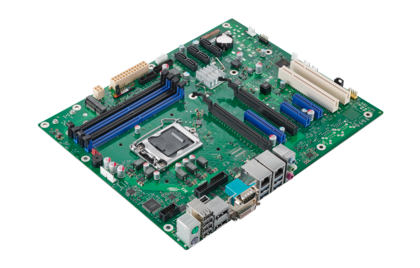

D3446-S
Besides assured extended availability for five years, the KONTRON Mainboard D3446-S of the Industrial Series provides support for highly performant Intel® XEON CPUs and for ECC (Error Correction Code). Also, it offers latest Intel® iAMT 11.0 and vPro 2015 manageability. It is particularly suitable for applications like workstations and entry-level servers, various medical applications and applications with high-performance needs. |
Technical Details
- ATX
- Intel® C236 Express Chipset
- LGA1151
- Intel® Xeon® E3-12xx V5 processor series
- Intel® 6th Generation Core™ i7 / i5 / i3 Processors
- max. 80W TDP
- Supporting Intel® iAMT 11.0 / vPro 2015
- Dual Channel DDR4 2133 SDRAM UDIMM (two sockets), max. 64 GB; ECC / Non-ECC
- Intel® HD Graphics (DX12)
- DVI-D & 2x DisplayPort V1.2
- 2x PCI Express x16: 1x 16 Lanes (Gen. 3) / 1x 4 Lanes (Gen. 3)
- 1x PCI Express x8 (Gen. 3), 2x PCI Express x4 (Gen. 3): 1x 4 Lanes / 1x 1 Lane
- Dual Intel® GbE LAN (iAMT Support; Teaming Support)
- Intel® High Definition 5.1 Audio
- Infineon TPM V2.0
- 8 Bit GPIO Port; Second COM Port; Boot Watchdog
- USB 2.0: 4x external / 1x internal
- USB 3.0: 4x external / 1x internal
- 6x SATA 6Gb/s, Parallel Port (Pin Header onboard)
- m-SATA socket (fullsize) & mPCIe (halfsize) (m-SATA can be configured as mPCIe – via BIOS)
- Industrial Series; operating temperature range from 0°C to 60°C
|
| |
D3445-S
The KONTRON Mainboard D3445-S ATX of the Industrial Series is equipped with the cost-optimized Intel® H110 Express Chipset and supports the 6th generation of Intel® Core™ Processors up to 65W TDP. The KONTRON D3445-S is a fully functional mainboard and particularly suitable for entry-level applications with lower performance demands. |
Technical Details
- ATX
- Intel® H110 Express Chipset
- LGA1151
- Intel® 6th Generation Core™ i7 / i5 / i3 Processors
- max. 65W TDP
- Dual Channel DDR4 2133 SDRAM (two sockets), max. 32 GB; Non-ECC
- Intel® HD Graphics (DX12)
- DVI-D and DisplayPort V1.2
- 2x PCI Express x16: 1x 16 Lanes (Gen. 3) / 1x 1 Lane (Gen. 2)
1x PCI Express x8 (Gen. 2), 2x PCI Express x4 (Gen. 2)
- Multichannel Audio & Dual Intel Gbit LAN onboard
- Intel® TPM V2.0 onboard
- USB 2.0: 4x external / 1x internal
- USB 3.0: 2x external / 1x internal
- 4x SATA 6Gb/s, Parallel Port
- BIOS-POST/-Boot & OS Watchdog onboard
- Industrial Series; operating temperature range from 0°C to 60°C
|
| |

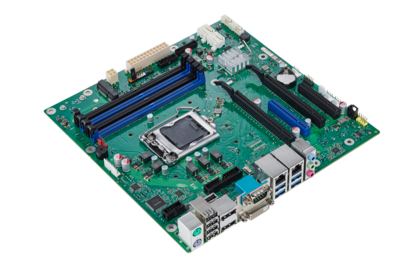

D3441-S
The KONTRON Industrial Mainboard D3441-S ATX is equipped with the highly performant Intel® Q170 Express Chipset and supports the 6th generation of Intel® Core™ Processors. Supporting 24/7 operation mode and an extended temperature range up to 60°C the KONTRON D3441-S provides high functionality and fits perfect with special requirements of certain markets. It offers extended manageability with Intel® iAMT 11.0 and vPro 2015. |
Technical Details
- µATX
- Intel® Q170 Express Chipset
- LGA1151
- Intel® 6th Generation Core™ i7 / i5 / i3 Processors
- max. 65W TDP
- Supporting Intel® iAMT 11.0 / vPro 2015
- Dual Channel DDR4 2133 SDRAM UDIMM (four sockets), max. 64 GB; Non-ECC
- Intel® HD Graphics (DX12)
- DVI-D, 2x DisplayPort V1.2
- 2x PCI Express x16 (Gen. 3): 1x 16 Lanes / 1x 4 Lanes
2x PCI Express x8 (Gen. 3): 1x 4 Lanes / 1x 1 Lane)
- Multichannel Audio & Dual Intel Gbit LAN onboard
- Infineon TPM V2.0
- 8 Bit GPIO Port; Second COM Port; HW Watchdog onboard
- USB 2.0: 4x external / 1x internal
- USB 3.0: 4x external / 1x internal
- 6x SATA 6Gb/s, Parallel Port Pin Connector
- m-SATA socket (fullsize) & mPCIe (halfsize) (m-SATA can be configured as mPCIe – via BIOS)
- HW Watchdog
- Operating temperature range from 0°C to 60°C
|
| |

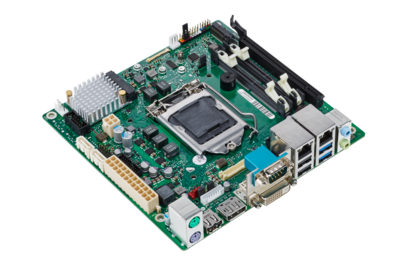

D3434-S
The KONTRON Mainboard D3434-S Mini-ITX is a smart solution for industrial needs. It is equipped with the cost-optimized Intel® H110 Express Chipset and supports the 6th generation of Intel® Core™ Processors up to 65W TDP. The KONTRON D3434-S also features a BIOS configurable PCI Express Lane, 2x LAN and eDP.
|
Technical Details
- LGA1151 Intel® Skylake-S Processor Series, max. 65W TDP
- Intel® HD Graphics (DX12, integrated in processor)
- 1 x DVI-D, 1 x DP V1.2, 1x eDP, 1 x Dual Channel 24-Bit LVDS
- 2 x DDR4 2133 SO-DIMM, max. 32GB
- 1 x PCI Express x16 Gen3, 1 x Mini-PCI Express
- 6 x USB 2.0, 6 x USB 3.0l
- 1 x M.2 SSD (SATA-based M.2)
- 2 x Intel GbE LAN onboard (incl. teaming support)
- Infineon TPM V2.0 onboard
- Dual Power Supply (ATX compliant & 12V only)
|
| |

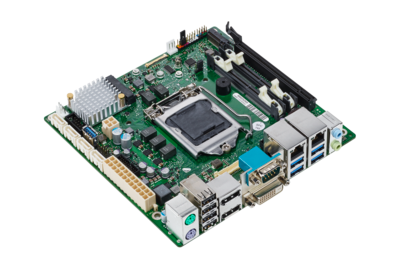

D3433-S
The KONTRON Mainboard D3433-S Mini-ITX of the Industrial Series is equipped with the highly performant Intel® Q170 Express Chipset and supports the 6th generation of Intel® Core™ Processors. It offers highest functionality on a small-sized surface with Intel® iAMT 11.0 and vPro 2015 manageability, 2x LAN and BIOS configurable PCI Express Lane. |
Technical Details
- Mini-ITX
- Intel® Q170 Express Chipset
- LGA1151
- Intel® 6th Generation Core™ i7 / i5 / i3 Processors
- max. 65W TDP
- Supporting Intel® iAMT 11.0 / vPro 2015 (CPU support required)
- Dual Channel DDR4 2133 SDRAM SO-UDIMM (two sockets), max. 32 GB; Non-ECC
- Intel® HD Graphics (integrated in processor e.g. HD510/530)
- DVI-D, Dual DisplayPort V1.2, eDP and Dual Channel LVDS support
- 1x PCI Express x16 (Gen. 3; PCIe-Lane-Split x16/x8, x8/x4,x4) and 1x Mini-PCI Express
- 2x Intel GbE LAN (incl. Teaming Support)
- Infineon TPM V2.0
- 8 Bit GPIO Port & multichannel Audio
- USB 2.0: 4x external / 1x internal
- USB 3.0: 4x external / 1x internal
- USB socket (stick/dongle USB3.0) onboard
- m-SATA (SATA III) socket support (for Embedded OS) and onboard support for M.2 SSD
- BIOS-POST/-Boot & OS - HW Watchdog
- Operating temperature range from 0°C to 60°C
|
| |
 |

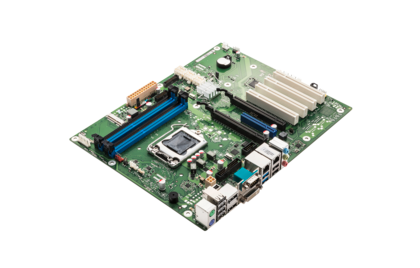

D3236-S
The KONTRON Industrial Mainboard D3236-S is the best choice for industrial requirements. Produced in the German KONTRON Mainboard Factory in Augsburg, the D3236-S fulfills the highest quality needs. Featured by the Intel® Q87 Express Chipset, the 4th Generation of Intel® Core™ processors are supported. To fulfill the requirement about reliable and managable network connections, the KONTRON D3236-S is equipped with two Intel® GbE LAN Controller which supports the latest Intel® Active Management Technology (iAMT9.0).
The KONTRON D3236-S is designed & approved for 24/7 continiuous operation also in enhanced temperature ranges up to 60°C.
Finally an improved Thermal Management & System Monitoring Microcontroller enables the user to get the whole overview about the system status.
|
| |
 |

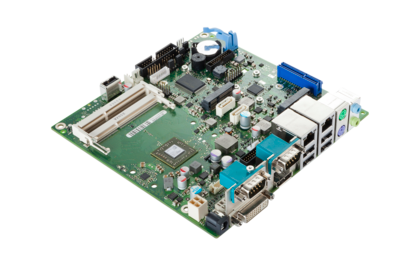

D3313-S
KONTRON Mainboard D3313-S Mainboard D3313-S - interfaces
The KONTRON Mainboard D3313-S is the most interesting platform for industrial applications. This mainboard family includes five different models with best perfomances from low power consumption up to high graphics performance.
The KONTRON D3313-S is designed for 24/7 continuous operation and equipped with 24Bit DualChannel LVDS, DisplayPort and DVI Interfaces.
|
| |
